Apex footers might look like classic ‘isolation’ cones, but they are far more sophisticated and effective than that.
They combine a hardened steel (or silicon-nitride ceramic) ball interface with a dual-purpose isolation/dissipation support. The external, structural elements are pressure formed from carbon composites, the void within the cone filled with a specially developed, proprietary polymer that decouples the upper element from the base. Originally developed for aerospace applications, this polymer exhibits extraordinary energy dissipation properties. The precision moulded cup offers a perfect contact surface for the ball, ensuring optimum energy transfer into the carbon cone and then, via the cone’s large internal surface area, into the polymer. The end result is remarkable management of spurious energy, whether that energy originates within the supported component, or is transmitted by the structure that supports it.

Adjustability

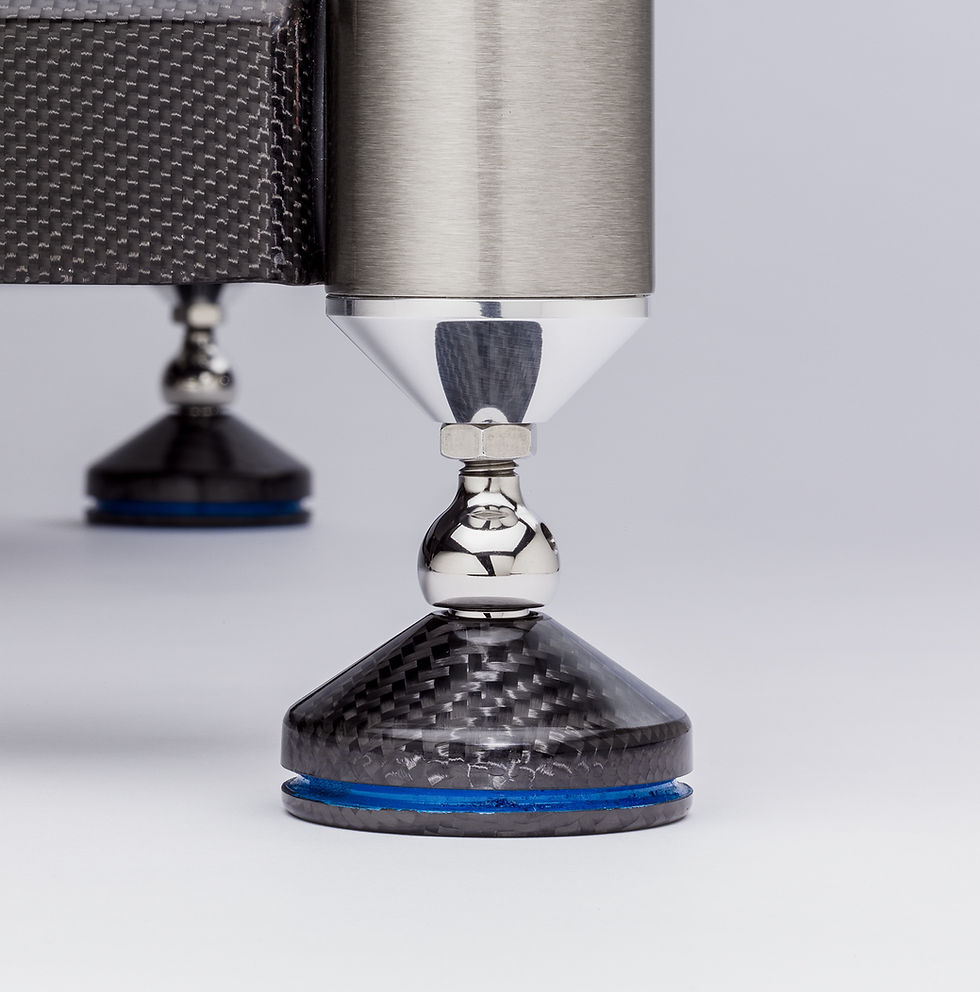

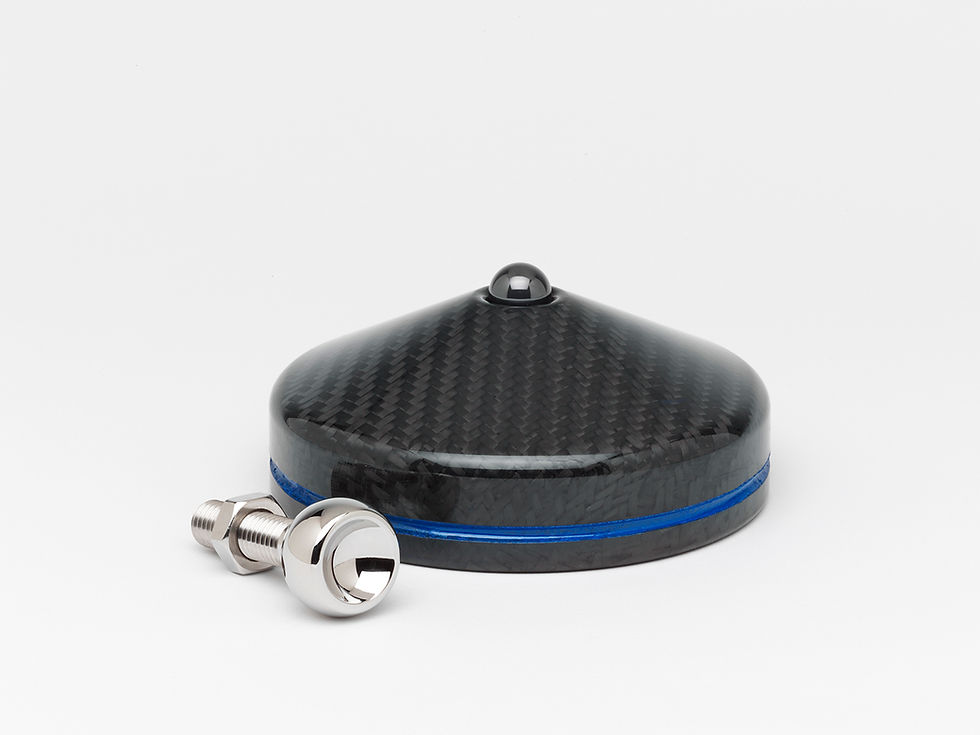

Unlike conventional cones, the APEX and the APEX XL also offer a leveling facility when used in place of spikes or threaded feet. Stainless steel levelers are tipped with a precision-machined cup that interfaces perfectly with the upper face of the APEX ball, providing
a rigid, stable and adjustable support. APEX Levelers are available in six different thread sizes (imperial and metric) incorporate thru holes for adjustment under load and are supplied complete with lock nuts.



Apex XL

The new Apex XL increases the height and diameter of the cone, doubling the volume of the internal polymer and increasing its interface area with the external structure. The result is significantly greater energy dispersion and a huge step up in performance.



The musical impact of the reduction in noise floor and lower microphony needs to be heard to be believed, bringing performers to life and allowing their music to breathe.



APEX Mini

Sometimes you just don’t have the height in your rack to fit APEX supports under a unit – but you still want APEX performance. For that situation we now provide the APEX Mini, a scaled version of the APEX, using exactly the same, proven materials and geometry but designed specifically as a component coupler. Only 1.175”/30mm tall, it uses a smaller diameter ball than the standard and XL versions, so it’s not compatible with the APEX Levelers, but what it does do is provide the maximum possible performance from a more compact package. The Mini is almost 0.225”/6mm shorter than the standard APEX. That might not sound like much, but in many cases it makes all the difference.



Specs



Apex:
Diameter: 2.5 in.
Height: 1.45 in.
Weight: 130 grams

Apex XL:
Diameter: 4 in.
Height: 1.9 in.
Weight: 635 grams

Apex Mini:

Diameter: 2 in.
Height: 1.175 in.
Weight: 87 grams

Load capacity tested to beyond 1,000 pounds for each

Apex Footers

$1,000.00Price
Apex Size
Interface
Number
  • Apex Footers available with fixed component interface, or with standard adjustable 3/8-16" thread leveler interface.



    Additional adjustable leveler thread sizes available here in the following sizes:

    • 1/4-20" thread
    • 5/16-18" thread
    • 1/2-13" thread
    • 8mm x 1.25 thread
    • 10mm x 1.5 thread
    • 12mm x 1.25 thread
